complexType SecuritySystemtype

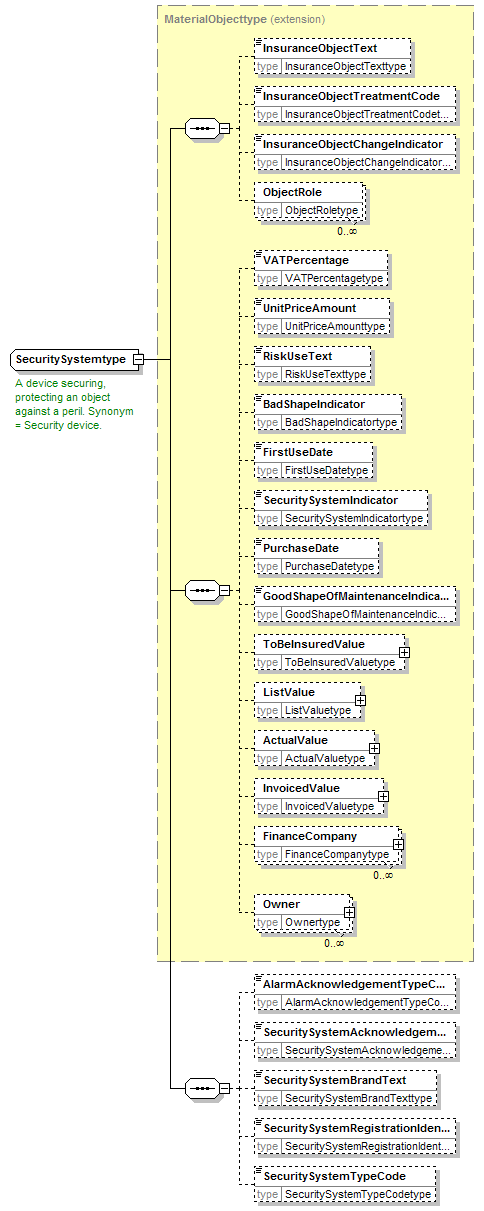

diagram
namespace http://www.telebib2.org
type extension of MaterialObjecttype
properties
base MaterialObjecttype
children InsuranceObjectText InsuranceObjectTreatmentCode InsuranceObjectChangeIndicator ObjectRole VATPercentage UnitPriceAmount RiskUseText BadShapeIndicator FirstUseDate SecuritySystemIndicator PurchaseDate GoodShapeOfMaintenanceIndicator ToBeInsuredValue ListValue ActualValue InvoicedValue FinanceCompany Owner AlarmAcknowledgementTypeCode SecuritySystemAcknowledgementBodyIdentificationCode SecuritySystemBrandText SecuritySystemRegistrationIdentifier SecuritySystemTypeCode
used by
elements Buildingtype/SecuritySystem Contentstype/SecuritySystem Vehicletype/SecuritySystem
annotation
appinfo
A device securing, protecting an object against a peril. Synonym = Security device.
documentation
A device securing, protecting an object against a peril. Synonym = Security device.
documentation
Security system
documentation
Beveiligingssysteem
documentation
Dispositif de sécurité
source <xsd:complexType name="SecuritySystemtype">
  <xsd:annotation>
    <xsd:appinfo source="tb2Semantics">A device securing, protecting an object against a peril. Synonym = Security device.</xsd:appinfo>
    <xsd:documentation source="BusinessDefinition" xml:lang="en">A device securing, protecting an object against a peril. Synonym = Security device.</xsd:documentation>
    <xsd:documentation source="BusinessTerm" xml:lang="en">Security system</xsd:documentation>
    <xsd:documentation source="BusinessTerm" xml:lang="nl">Beveiligingssysteem</xsd:documentation>
    <xsd:documentation source="BusinessTerm" xml:lang="fr">Dispositif de sécurité</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="MaterialObjecttype">
      <xsd:sequence>
        <xsd:element name="AlarmAcknowledgementTypeCode" type="AlarmAcknowledgementTypeCodetype" minOccurs="0"/>
        <xsd:element name="SecuritySystemAcknowledgementBodyIdentificationCode" type="SecuritySystemAcknowledgementBodyIdentificationCodetype" minOccurs="0"/>
        <xsd:element name="SecuritySystemBrandText" type="SecuritySystemBrandTexttype" minOccurs="0"/>
        <xsd:element name="SecuritySystemRegistrationIdentifier" type="SecuritySystemRegistrationIdentifiertype" minOccurs="0"/>
        <xsd:element name="SecuritySystemTypeCode" type="SecuritySystemTypeCodetype" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>

element SecuritySystemtype/AlarmAcknowledgementTypeCode
diagram
namespace http://www.telebib2.org
type AlarmAcknowledgementTypeCodetype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="AlarmAcknowledgementTypeCode" type="AlarmAcknowledgementTypeCodetype" minOccurs="0"/>

element SecuritySystemtype/SecuritySystemAcknowledgementBodyIdentificationCode
diagram
namespace http://www.telebib2.org
type SecuritySystemAcknowledgementBodyIdentificationCodetype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="SecuritySystemAcknowledgementBodyIdentificationCode" type="SecuritySystemAcknowledgementBodyIdentificationCodetype" minOccurs="0"/>

element SecuritySystemtype/SecuritySystemBrandText
diagram
namespace http://www.telebib2.org
type SecuritySystemBrandTexttype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="SecuritySystemBrandText" type="SecuritySystemBrandTexttype" minOccurs="0"/>

element SecuritySystemtype/SecuritySystemRegistrationIdentifier
diagram
namespace http://www.telebib2.org
type SecuritySystemRegistrationIdentifiertype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="SecuritySystemRegistrationIdentifier" type="SecuritySystemRegistrationIdentifiertype" minOccurs="0"/>

element SecuritySystemtype/SecuritySystemTypeCode
diagram
namespace http://www.telebib2.org
type SecuritySystemTypeCodetype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="SecuritySystemTypeCode" type="SecuritySystemTypeCodetype" minOccurs="0"/>
