complexType PrivateVehicleOrTruckAsDriventype

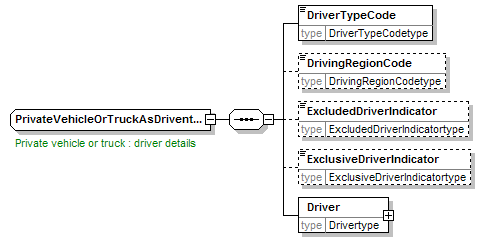

diagram
namespace	http://www.telebib2.org
children	DriverTypeCode DrivingRegionCode ExcludedDriverIndicator ExclusiveDriverIndicator Driver
used by	element  Vehicletype/PrivateVehicleOrTruckAsDriven
annotation	appinfo A private vehicle/truck is driven by a driver. (19.06.2007 : namechange into ...Or...) documentation Private vehicle or truck : driver details documentation Privaat voertuig of trekker : details bestuurder documentation Véhicule privé ou tracteur : détail du conducteur
source	<xsd:complexType name="PrivateVehicleOrTruckAsDriventype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">A private vehicle/truck is driven by a driver. (19.06.2007 : namechange into ...Or...)</xsd:appinfo>     <xsd:documentation source="BusinessTerm" xml:lang="en">Private vehicle or truck : driver details</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Privaat voertuig of trekker : details bestuurder</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Véhicule privé ou tracteur : détail du conducteur</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="DriverTypeCode" type="DriverTypeCodetype"/>     <xsd:element name="DrivingRegionCode" type="DrivingRegionCodetype" minOccurs="0"/>     <xsd:element name="ExcludedDriverIndicator" type="ExcludedDriverIndicatortype" minOccurs="0"/>     <xsd:element name="ExclusiveDriverIndicator" type="ExclusiveDriverIndicatortype" minOccurs="0"/>     <xsd:element name="Driver" type="Drivertype"/>   </xsd:sequence> </xsd:complexType>

element PrivateVehicleOrTruckAsDriventype/DriverTypeCode

diagram
namespace	http://www.telebib2.org
type	DriverTypeCodetype
properties	isRef  0 content  simple
source	<xsd:element name="DriverTypeCode" type="DriverTypeCodetype"/>

element PrivateVehicleOrTruckAsDriventype/DrivingRegionCode

diagram
namespace	http://www.telebib2.org
type	DrivingRegionCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DrivingRegionCode" type="DrivingRegionCodetype" minOccurs="0"/>

element PrivateVehicleOrTruckAsDriventype/ExcludedDriverIndicator

diagram
namespace	http://www.telebib2.org
type	ExcludedDriverIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="ExcludedDriverIndicator" type="ExcludedDriverIndicatortype" minOccurs="0"/>

element PrivateVehicleOrTruckAsDriventype/ExclusiveDriverIndicator

diagram
namespace	http://www.telebib2.org
type	ExclusiveDriverIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="ExclusiveDriverIndicator" type="ExclusiveDriverIndicatortype" minOccurs="0"/>

element PrivateVehicleOrTruckAsDriventype/Driver

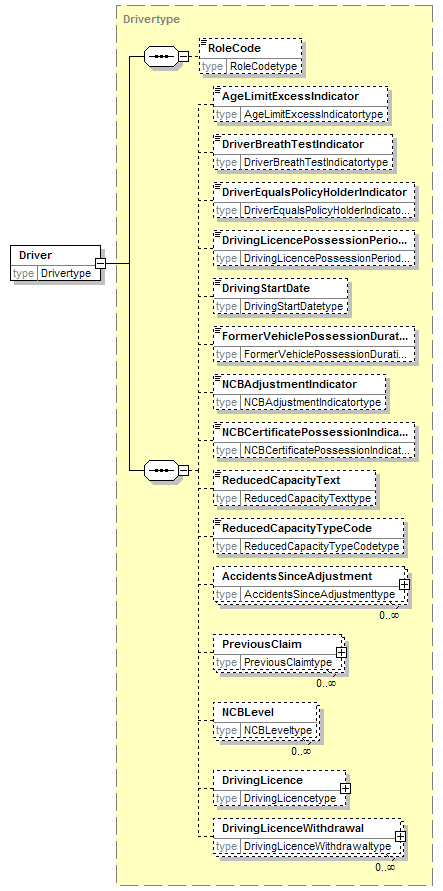

diagram
namespace	http://www.telebib2.org
type	Drivertype
properties	isRef  0 content  complex
children	RoleCode AgeLimitExcessIndicator DriverBreathTestIndicator DriverEqualsPolicyHolderIndicator DrivingLicencePossessionPeriodIndicator DrivingStartDate FormerVehiclePossessionDuration NCBAdjustmentIndicator NCBCertificatePossessionIndicator ReducedCapacityText ReducedCapacityTypeCode AccidentsSinceAdjustment PreviousClaim NCBLevel DrivingLicence DrivingLicenceWithdrawal
source	<xsd:element name="Driver" type="Drivertype"/>
