complexType Indextype

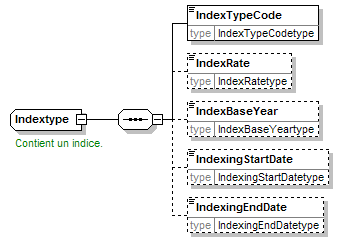

diagram
namespace	http://www.telebib2.org
children	IndexTypeCode IndexRate IndexBaseYear IndexingStartDate IndexingEndDate
used by	complexTypes  ActualIndextype EndIndextype PreviousIndextype StartIndextype SubscriptionIndextype
annotation	appinfo Figure showing the relative level of prices or wages compared with that of a previous date. appinfo (IND) documentation Contient un indice. documentation Bevat een index. documentation Figure showing the relative level of prices or wages compared with that of a previous date. documentation Index documentation Index documentation Index documentation Index
source	<xsd:complexType name="Indextype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">Figure showing the relative level of prices or wages compared with that of a previous date.</xsd:appinfo>     <xsd:appinfo source="tb2Edifact">(IND)</xsd:appinfo>     <xsd:documentation source="BusinessDefinition" xml:lang="fr">Contient un indice.</xsd:documentation>     <xsd:documentation source="BusinessDefinition" xml:lang="nl">Bevat een index.</xsd:documentation>     <xsd:documentation source="BusinessDefinition" xml:lang="en">Figure showing the relative level of prices or wages compared with that of a previous date.</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="en">Index</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Index</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Index</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="ge">Index</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="IndexTypeCode" type="IndexTypeCodetype"/>     <xsd:element name="IndexRate" type="IndexRatetype" minOccurs="0"/>     <xsd:element name="IndexBaseYear" type="IndexBaseYeartype" minOccurs="0"/>     <xsd:element name="IndexingStartDate" type="IndexingStartDatetype" minOccurs="0"/>     <xsd:element name="IndexingEndDate" type="IndexingEndDatetype" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element Indextype/IndexTypeCode

diagram
namespace	http://www.telebib2.org
type	IndexTypeCodetype
properties	isRef  0 content  simple
source	<xsd:element name="IndexTypeCode" type="IndexTypeCodetype"/>

element Indextype/IndexRate

diagram
namespace	http://www.telebib2.org
type	IndexRatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="IndexRate" type="IndexRatetype" minOccurs="0"/>

element Indextype/IndexBaseYear

diagram
namespace	http://www.telebib2.org
type	IndexBaseYeartype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="IndexBaseYear" type="IndexBaseYeartype" minOccurs="0"/>

element Indextype/IndexingStartDate

diagram
namespace	http://www.telebib2.org
type	IndexingStartDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="IndexingStartDate" type="IndexingStartDatetype" minOccurs="0"/>

element Indextype/IndexingEndDate

diagram
namespace	http://www.telebib2.org
type	IndexingEndDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="IndexingEndDate" type="IndexingEndDatetype" minOccurs="0"/>
