complexType Annulmenttype

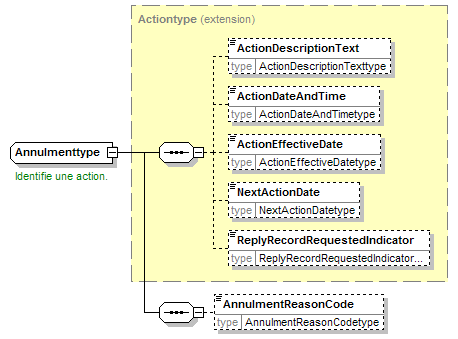

diagram
namespace	http://www.telebib2.org
type	extension of Actiontype
properties	base  Actiontype
children	ActionDescriptionText ActionDateAndTime ActionEffectiveDate NextActionDate ReplyRecordRequestedIndicator AnnulmentReasonCode
used by	element  Contracttype/Annulment
annotation	appinfo Final cessation. appinfo (ACT) documentation Identifie une action. documentation Identificeert een actie. documentation Action documentation Annulment documentation Annulatie documentation Annulation
source	<xsd:complexType name="Annulmenttype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">Final cessation.</xsd:appinfo>     <xsd:appinfo source="tb2Edifact">(ACT)</xsd:appinfo>     <xsd:documentation source="BusinessDefinition" xml:lang="fr">Identifie une action.</xsd:documentation>     <xsd:documentation source="BusinessDefinition" xml:lang="nl">Identificeert een actie.</xsd:documentation>     <xsd:documentation source="BusinessDefinition" xml:lang="en">Action</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="en">Annulment</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Annulatie</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Annulation</xsd:documentation>   </xsd:annotation>   <xsd:complexContent>     <xsd:extension base="Actiontype">       <xsd:sequence>         <xsd:element name="AnnulmentReasonCode" type="AnnulmentReasonCodetype" minOccurs="0"/>       </xsd:sequence>     </xsd:extension>   </xsd:complexContent> </xsd:complexType>

element Annulmenttype/AnnulmentReasonCode

diagram
namespace	http://www.telebib2.org
type	AnnulmentReasonCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AnnulmentReasonCode" type="AnnulmentReasonCodetype" minOccurs="0"/>
